0 - 10V Controller
| Quantity | Discount | Unit Price | |||
|---|---|---|---|---|---|
| 1 | -0% | $12.99 | |||
| 20 - 50 | -8% | $11.99 | |||
| 50+ | -15% | $10.99 | |||
| I need way more than that! | |||||
This product ships from European Union, beautiful country - Lithuania. Import duties might apply depending on your country. Price that you see is without VAT or any other taxes added on top. If you live inside of European Union VAT will be added upon checkout.
- Enjoy free delivery for orders over $500!
- For orders below $500, a delivery fee of $20 - $50 applies.
- We deliver your orders with express courier services to ensure you get your products as soon as possible.
General specs
- Isolation: Optical
- Range: 0 - 10V

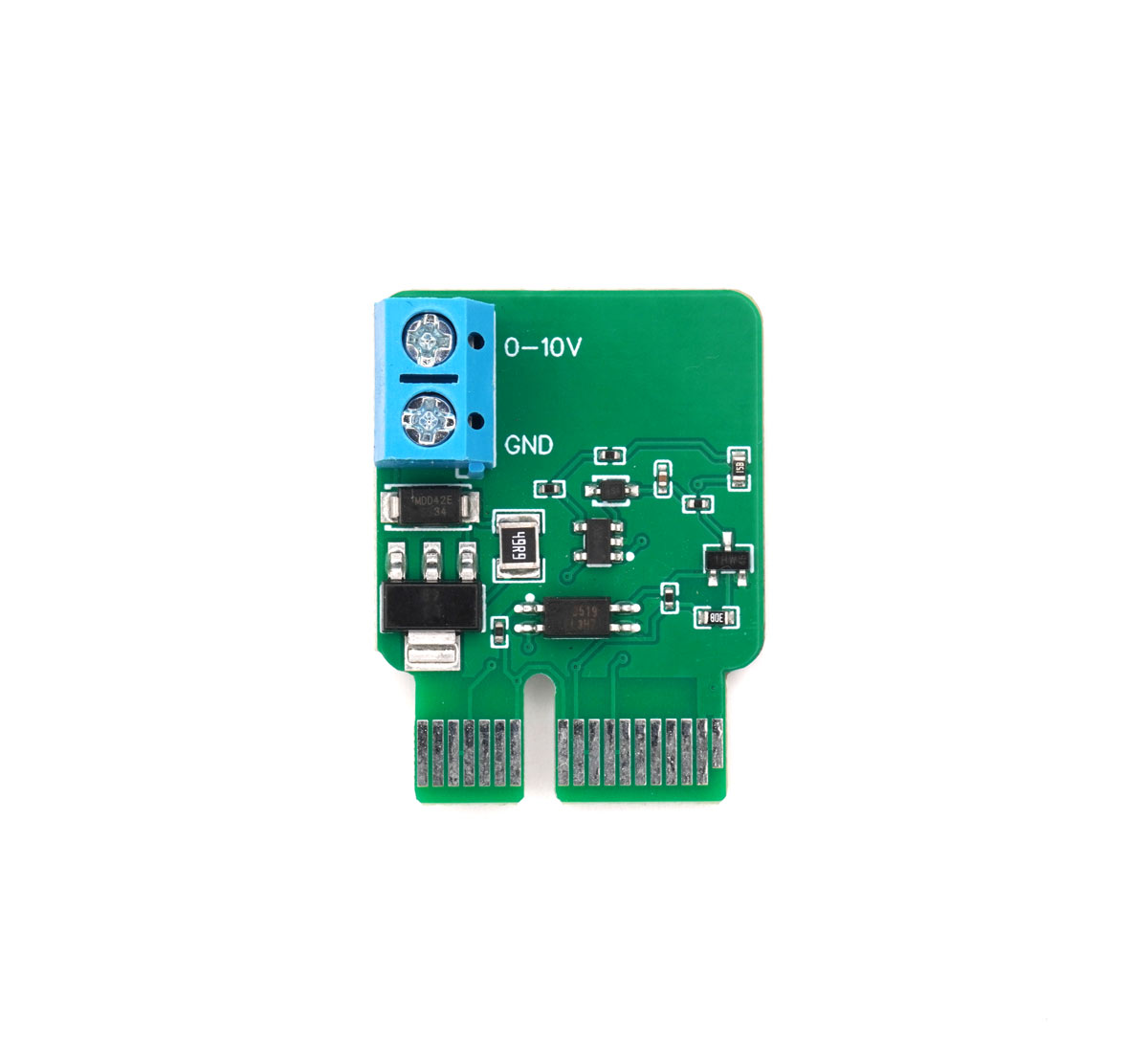

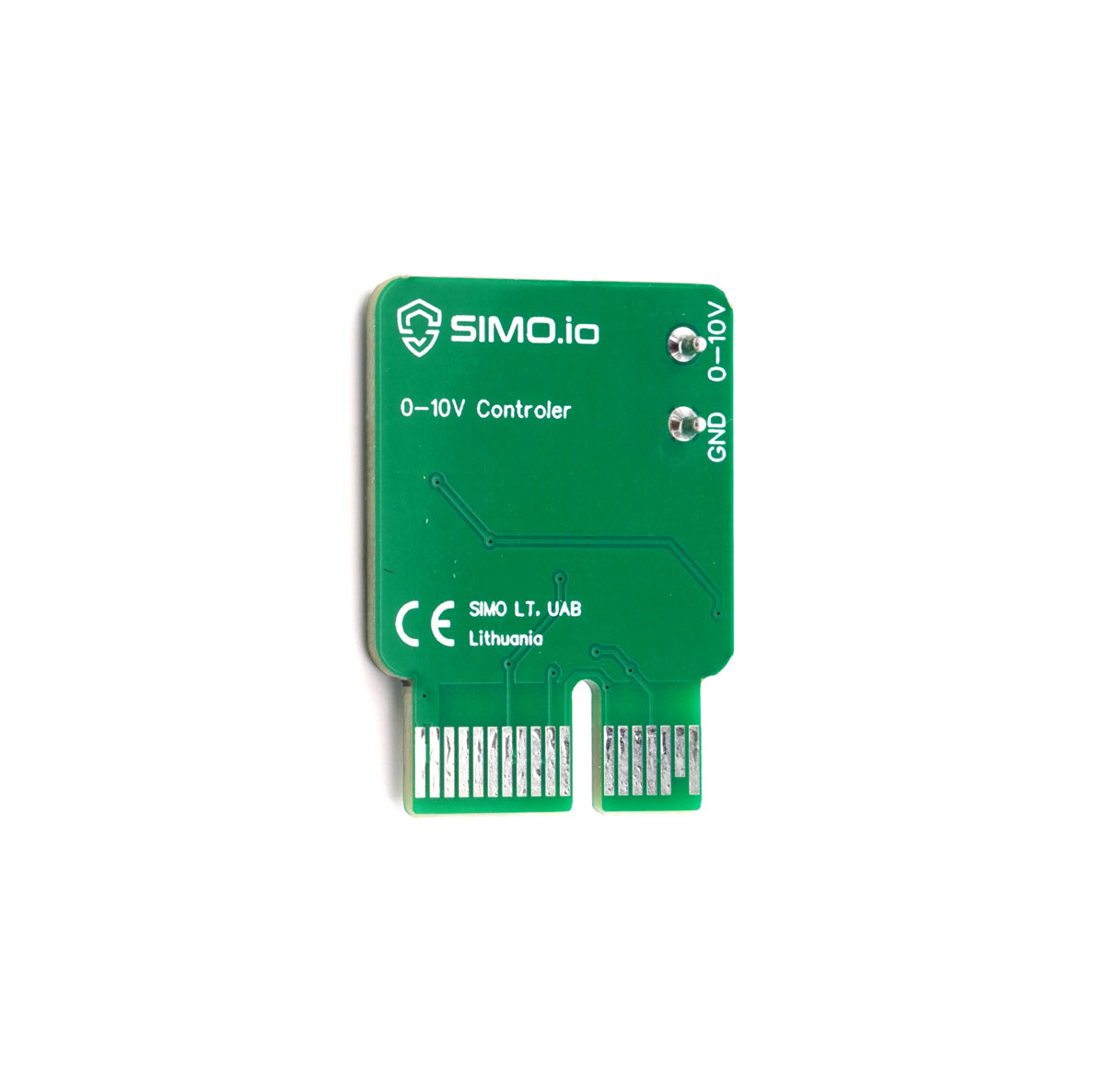

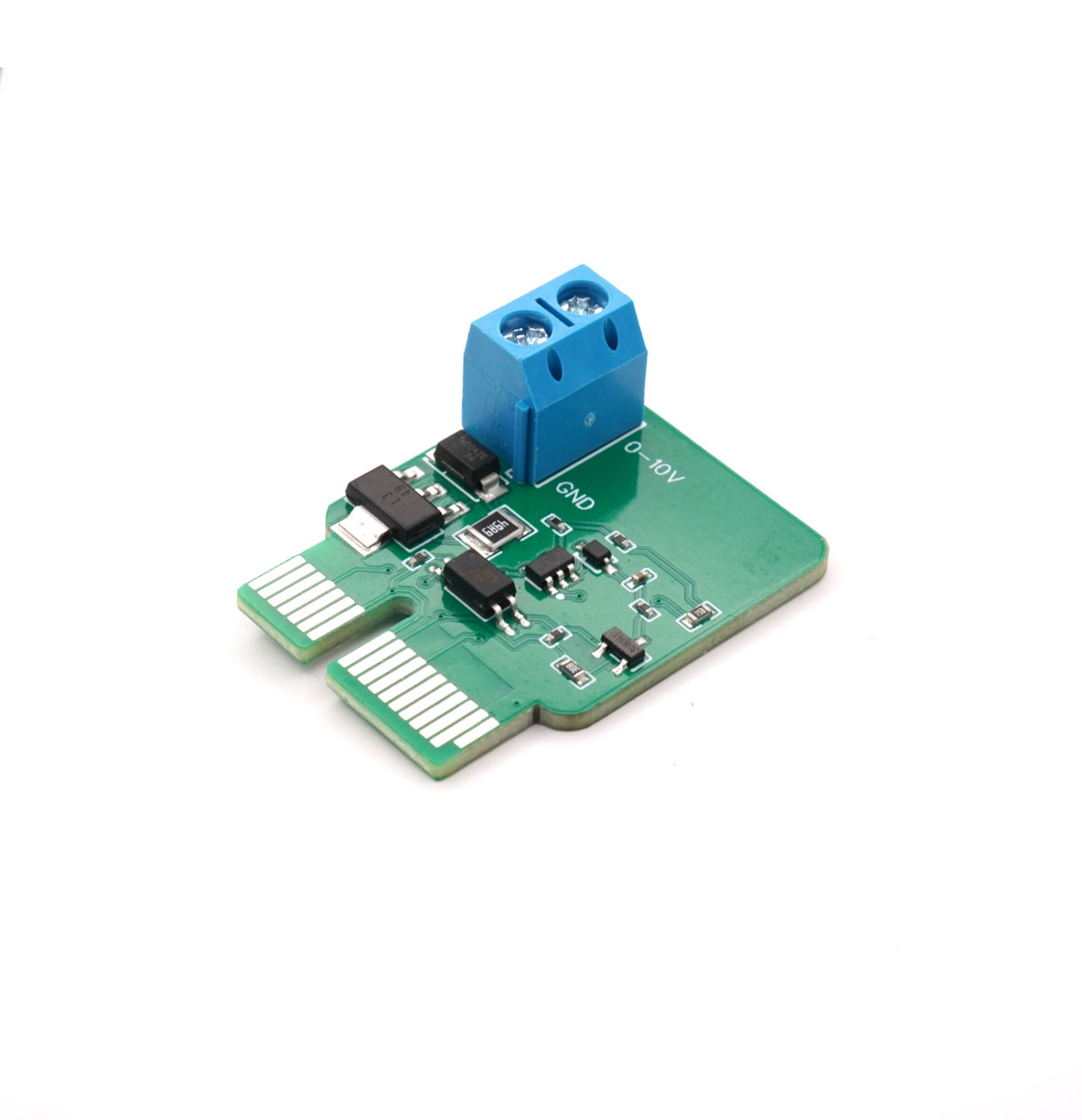

0–10 V controller: calm, precise analog lighting control
The 0–10 V controller brings standards‑compliant 0–10 V DC analog dimming to your SIMO.io smart home. It pairs with LED drivers and ballasts that accept 0–10 V, delivering predictable levels, smooth fades, and a professional day‑to‑day feel across architectural fixtures.
TL;DR
- Controls fixtures via 0–10 V DC analog dimming (DIM+/DIM–).
- Ideal for architectural drivers and ballasts that expose 0–10 V control inputs.
- Wire‑first and local‑first: scenes and schedules run on your SIMO.io hub.
- Gentle fades, clear min/max level handling, and clean grouping in the SIMO.io app.
- Snap‑in module for the Game Changer platform; serviceable and scalable.
What it does
- Analog authority: set exact levels across 0–10 V drivers and ballasts with smooth, predictable response.
- Scene‑friendly: group multiple 0–10 V zones; build transitions that feel natural at any level.
- Everyday clarity: manual overrides are respected; automations act with restraint.
- Wire‑first posture: keep runs short in the panel; coordinate rooms and floors through the SIMO.io hub.
Wiring basics
Two‑wire control: connect DIM+ and DIM– on the controller to the matching 0–10 V control input on the LED driver/ballast. Power for the LED load comes from the driver’s mains/L/N or DC output as specified by the driver—not from the 0–10 V pair.
0–10 V and GND. In SIMO.io’s wire‑first architecture, GND is your building’s local low‑voltage ground. Tie the Game Changer board to this ground. If a device uses its own DC supply, bond the supply’s negative (–) to the same local GND, and connect the device’s DIM‑ to that GND. Without a shared reference, the 0–10 V level will not be interpreted correctly.Use cases
- Cove and indirect lighting driven by 0–10 V dimmable LED drivers.
- Architectural downlights and linear fixtures with 0–10 V ballasts/drivers.
- Ventilation valves and flaps expecting a 0–10 V modulation input.
- HVAC equipment that accepts 0–10 V for speed/position/level control.
- Mixed systems: coordinate 0–10 V zones with relays, DC dimmers, and DALI via scenes.
Specs
| Control signal | 0–10 V DC analog dimming (DIM+/DIM–) |
|---|---|
| Pins | 0–10 V out and GND (shared reference) |
| Typical pairing | LED drivers and ballasts that expose 0–10 V control inputs |
| Grounding | Bond device negative (–) to local low‑voltage GND; connect DIM– to the same GND |
| Integration | SIMO.io Game Changer snap‑in module; managed by the SIMO.io hub |
FAQs
Does this power the lights?
No. 0–10 V is a control interface. Your LED driver powers the lights; the controller sets the dimming level.
Will this work with my driver?
If your driver or ballast supports a 0–10 V (or 1–10 V) control input labeled DIM+/DIM– or similar, it is designed for analog control and is a good candidate. Always check the datasheet for wiring and behavior.
How does it compare to DALI?
0–10 V is a simple analog signal—ideal for straightforward zones. DALI is a digital bus for addressable devices, groups, and two‑way feedback. SIMO.io supports both; choose the right tool for the job.
Change the module, not your weekend
Every SIMO.io PCIe‑style module is field‑replaceable. Your logic is bound to the port—not to throwaway device IDs—so if a module ever fails or you’re upgrading, pull it off the rail, snap in the replacement, and you’re done. The Game Changer board provides the same signals over that PCIe port instantly, so scenes, schedules, and security rules stay intact. No re‑pairing. No reprogramming. No hunting through automations. Keep a small set of spares and restore full function in minutes. That’s professional serviceability by design.
SIMO.io — Smart Home Supremacy. Every module serves with quiet precision—ruled locally by The Game Changer board, commanded by your SIMO.io hub (local or virtual)—for protective, reliable, inevitable control.
